Hi-Cone
Disposable Bottle HolderWorking with FH Muenster in collaboration with the packaging company, Hi-Cone, designers were tasked with the MIN = MAX project. This project entailed designing a carrier for 6 x 1.5L water bottles using only plastic film.
Using very little material and maximizing stability earned my "Pull-It Together" Design the 3rd place award. Weighing in at only 9 grams, "Pull-It Together" eliminates the need for full plastic wraps. The design features two long handles, and supports all six bottles at their widest point.

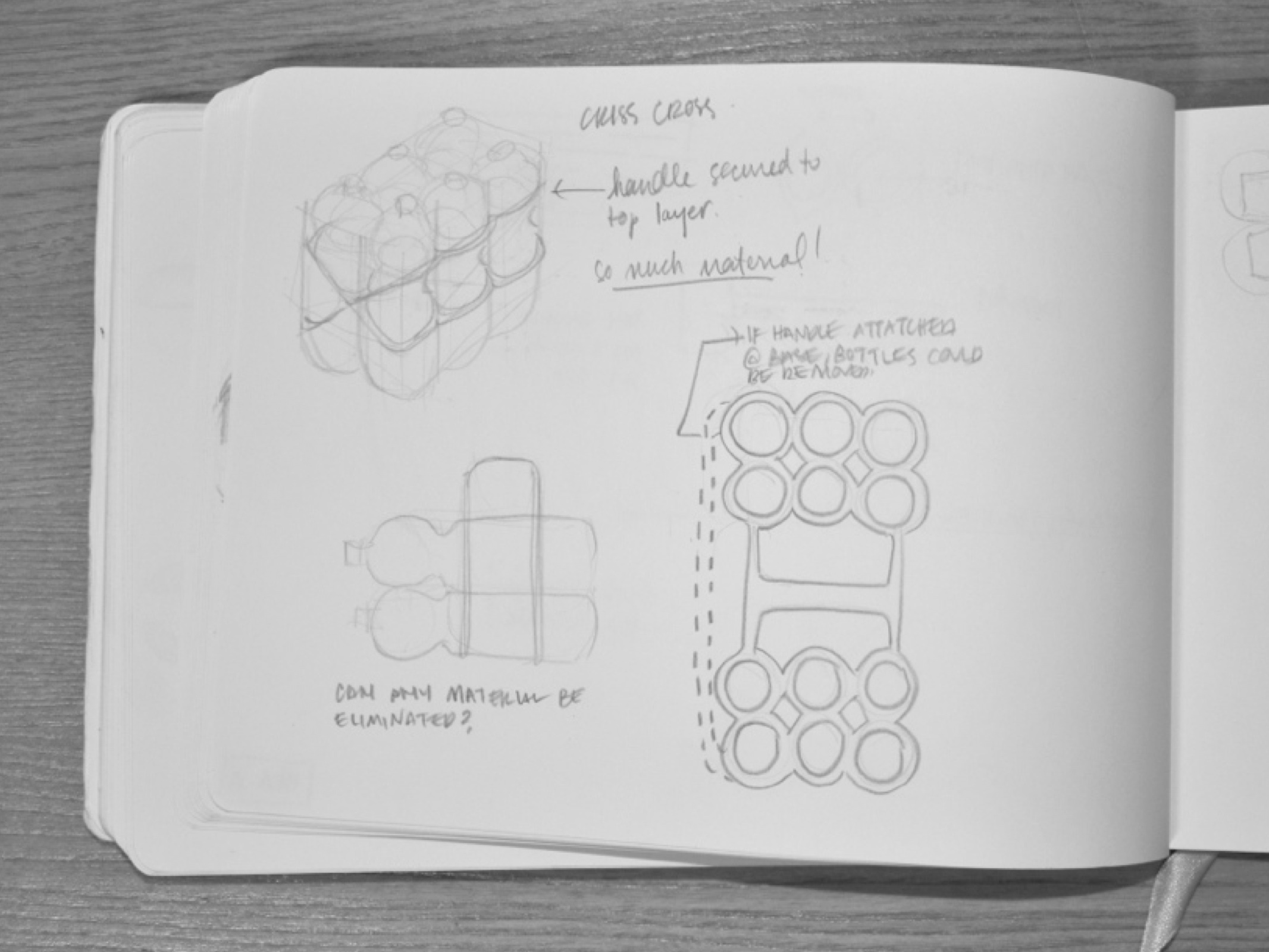

In addition to this design, I also created 4 other designs which utilized clever patterns to nest shapes within the plastic and allow for maximum weight to be supported.
Using very little material and maximizing stability earned my "Pull-It Together" Design the 3rd place award. Weighing in at only 9 grams, "Pull-It Together" eliminates the need for full plastic wraps. The design features two long handles, and supports all six bottles at their widest point.
In addition to this design, I also created 4 other designs which utilized clever patterns to nest shapes within the plastic and allow for maximum weight to be supported.
